Lieu d'origine: | Chine |
---|---|
Nom de marque: | KAD |
Certification: | CE |
Numéro de modèle: | Le nombre d'heures de travail |
Quantité de commande min: | 1 unité |
Prix: | $4100- $4600/ Unit |
Détails d'emballage: | Palette en fer + film plastique |
Délai de livraison: | 15 jours ouvrables |
Conditions de paiement: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Capacité d'approvisionnement: | 50 unités/mois |
Nom du produit: | Rouleur de rouleaux | Poids du chargement: | 500 kg ou plus |
---|---|---|---|
Hauteur de charge: | Unité de mesure | Capacité de la batterie: | 24v/210Ah |
Souce de puissance: | moteur à courant continu | Warranty of core components: | 1 Year |
Mettre en évidence: | Retourneuse à rouleaux semi-électrique,Retourneuse à rouleaux pneumatique semi-électrique,Industrie de l'emballage Tourne-rouleaux pneumatiques |

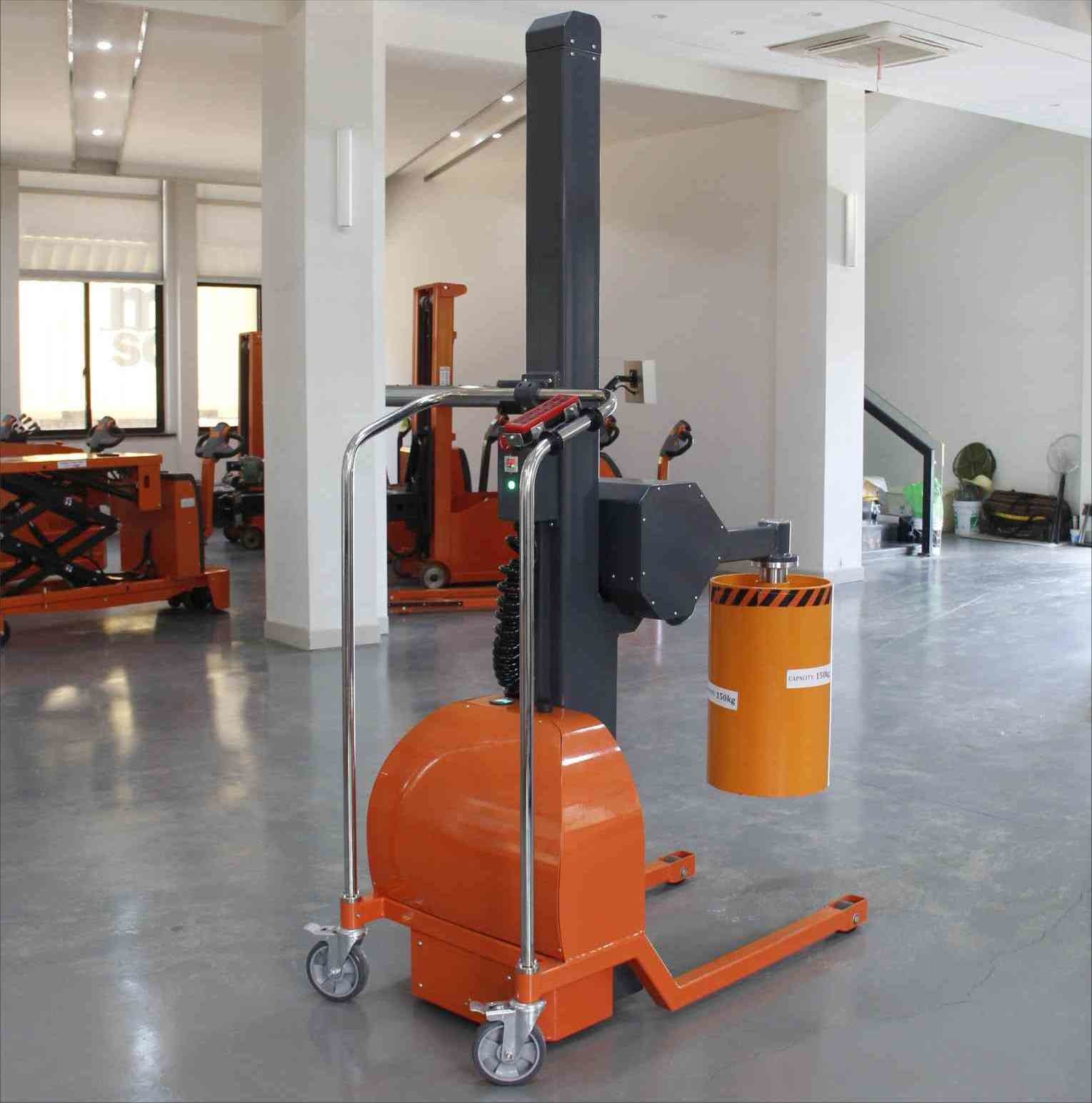

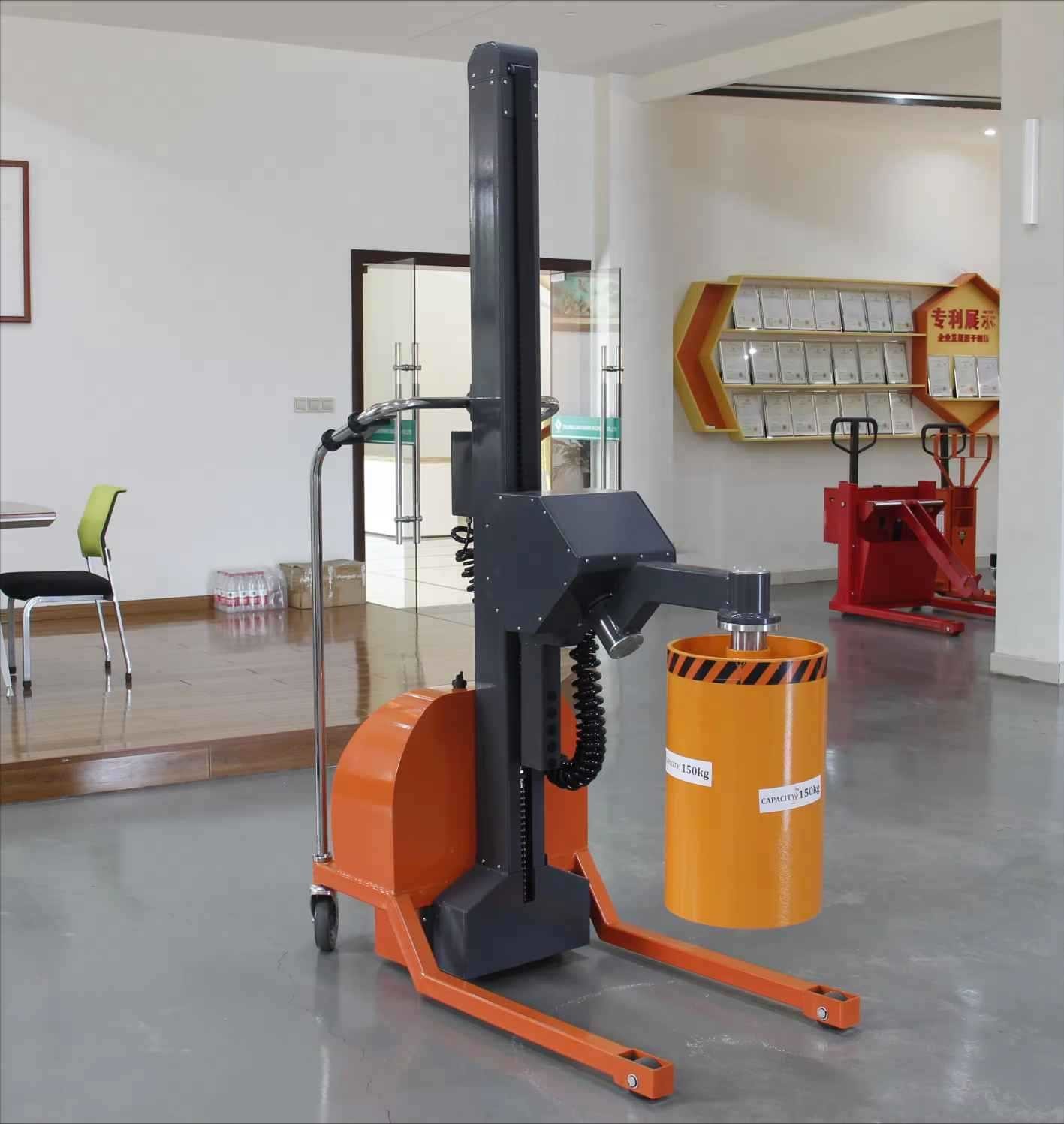

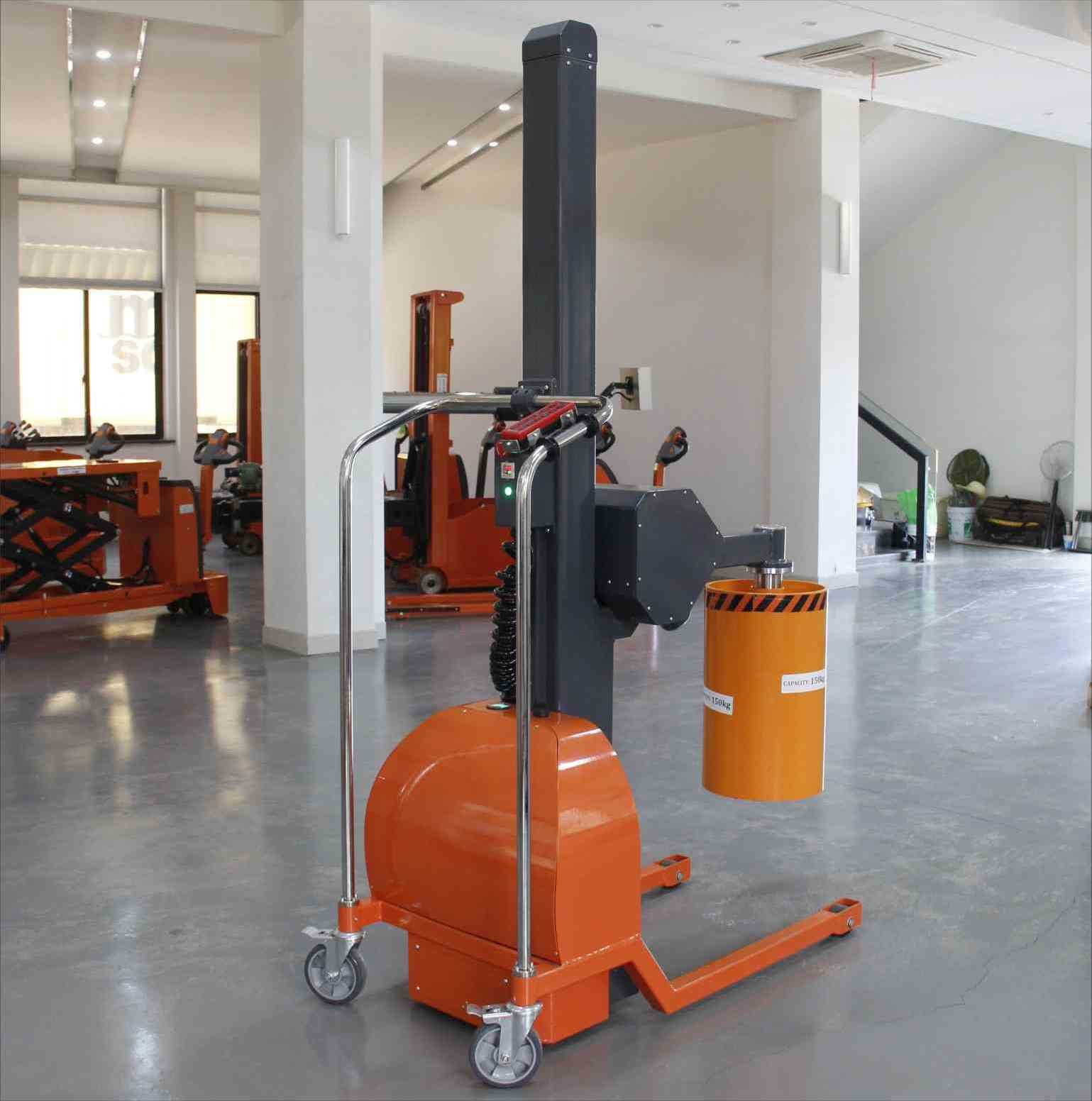

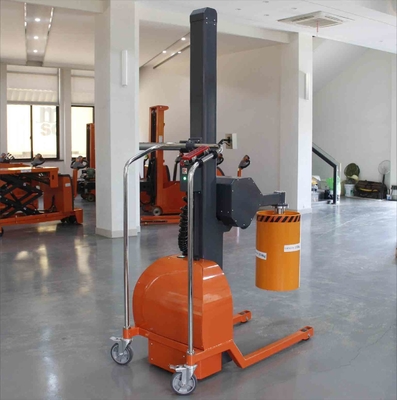

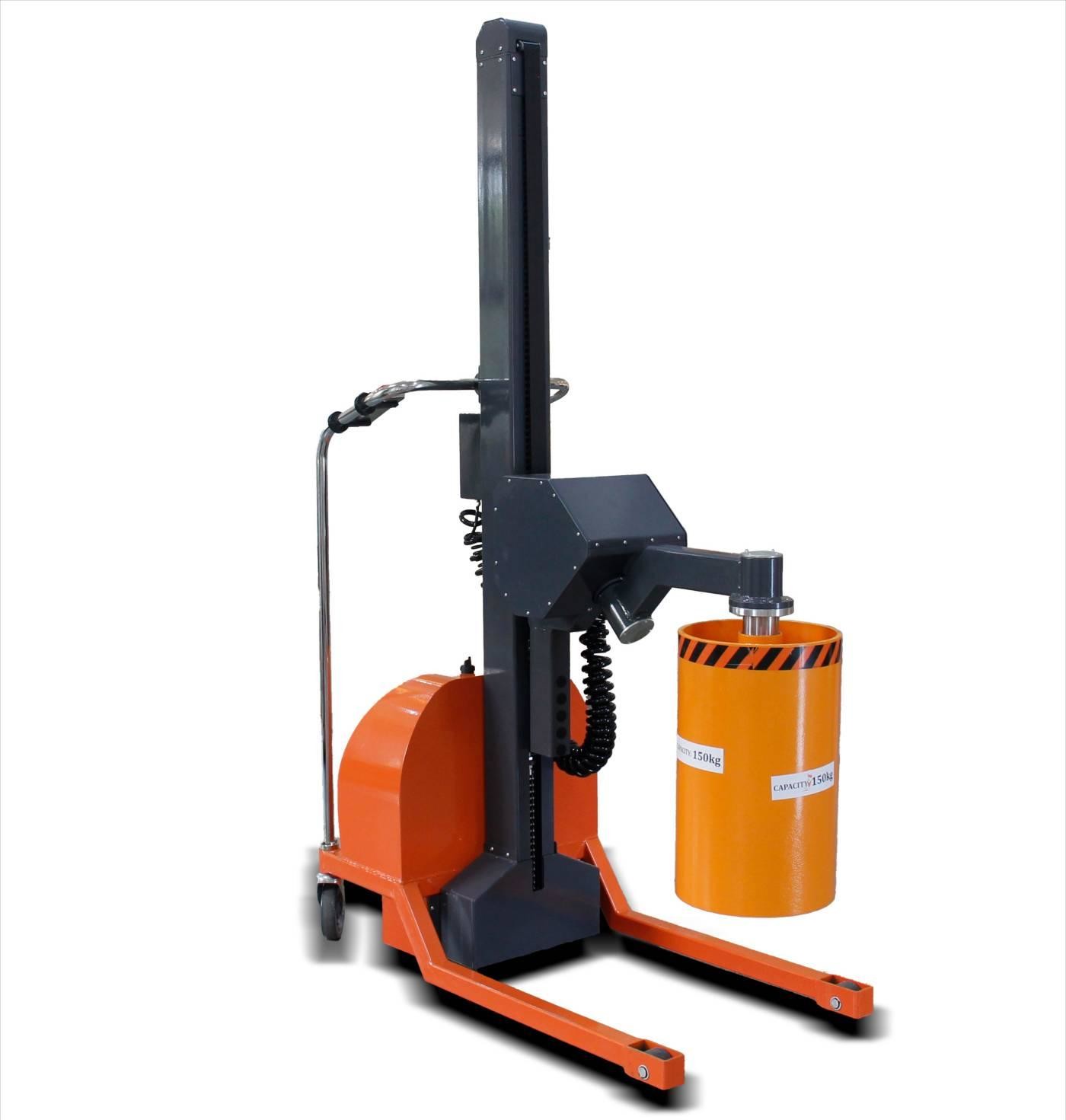

Semi Electric Pneumatic Roll turner Stacker for packing industry
The Semi Electric Pneumatic Roll Turner Stacker excels with its unique blend of benefits and differentiation. It marries the power of electric lifting with the precision of pneumatic rotation, offering unparalleled efficiency and versatility in handling heavy rolls. Its compact design enables seamless operation in confined spaces, while its eco-friendly operation reduces energy consumption and noise. Safety features guarantee operator safety, and low maintenance costs contribute to overall cost-effectiveness. Differentiating itself from competitors, this stacker combines innovative technology with practicality, setting the standard for modern material handling solutions.
power source
|
|
Battery
|
rated load
|
kg
|
500
|
load center
|
mm
|
500
|
operation way
|
|
Standing operation,electric lifting,electric gripper,electric rotating,manual moving
|
turning radius
|
mm
|
1050
|
aisle width
|
mm
|
1900
|
length
|
mm
|
1500
|
width
|
mm
|
760
|
height
|
mm
|
2100
|
mast
|
|
1-stage mast
|
adjustable extent of turning
|
mm
|
200~1250
|
max height of forks
|
mm
|
1500
|
min height of forks
|
mm
|
200
|
rotation angle
|
°
|
90°(left and right)
|
running speed(load/unload)
|
km/h
|
manual
|
hoisting speed(load/unload)
|
mm/s
|
110/160
|
descent speed(load/unload)
|
mm/s
|
150/130
|
climbing capability
|
%
|
3,5
|
braking mode
|
|
Wheel brake
|
tyres,material
|
|
Nylon
|
load wheel dimensions
|
mm
|
85*80,2pcs
|
steering wheel dimensions
|
mm
|
180*50,2pcs
|
hydraulic motor
|
kw
|
12v/2.2kw
|
battery
|
v/ah
|
12/100
|
charger
|
v/a
|
12/15,
|
weight
|
kg
|
450
|
Mandreal diameter:
|
|
3''/6''/customized
|
|
|
The significance of the use of forklift attachments:
1.High productivity, low operating costs.
Mechanized handling than the traditional manpower handling operations work short, while reducing the income and cost of labour, and improve the efficiency. In the same handling cycle, the number of forklift initiatives significantly lower, forklift corresponding tyres, transmission gears, fuel consumption, etc. are also reduced accordingly, the operating costs are also reduced accordingly.
2.Safe and reliable operation reduces the accident rate.
Forklift attachments designed and consumed by professional forklift attachments manufacturers for different industrial conditions are designed with safety devices, so that the goods clamped (or forked) are not easy to slide down in abnormal conditions, such as the pressure-retaining installation of clamping attachments (the oil pipe bursts when the goods are loaded, and the hydraulic fracture maintains the pressure so that the goods will not slide down); the end buffer installation of sidetransferring attachments, etc, which reduces the rate of accidents.
3.Little loss of goods.
With the help of the fixtures unique clamping, side shift, rotation and other functions, the goods can be more safely transported or stacked high or loading and unloading, and thus minimise the level of loss of goods. The use of attachments also reduces the frequency of pallet use (e.g. no pallet handling operations), its corresponding marketing and maintenance costs.
The above points are the benefits of using forklift attachments, so it is more appropriate to use forklift attachments if necessary.
