KAD Electric Pallet Stacker with 500mm Load Center 1100mm Fork Length and 1450mm Turning Radius

Informations de base

Quantité de commande min:	1
Prix:	2556

meilleur prix Contactez

Capacité de chargement:	1500 kg	Hauteur de levage:	3000-3500mm
Centre de charge:	500 mm	Taille de fourchette:	1100 * 170 * 50 mm
Rayon de virage:	1450 mm	entraînement de la vitesse:	4km/h
Capacité de la batterie:	Pour les appareils à commande numérique	Moteur de conduite:	0,75 kW
Moteur de levage:	2,2 kW	Type de pneu:	Polyuréthane
Taille des pneus:	210/80 mm	Taille globale:	1880 * 860 * 2100 mm
Poids:	600 kg	Autorisation de sol:	30 mm
Gradient:	3°/5°
Mettre en évidence:	500mm load center Electric Pallet Stacker , 1100mm fork length Electric Forklift , 1450mm turning radius Pallet Stacker

Popular KAD Electric Pallet Stacker 1.5ton 3m Electric Forklift

Full electric stackers are designed for loading, stacking, and short-distance palletizing of goods. Featuring a simple structure with flexible operation and excellent micro-control, these stackers offer high safety performance. Ideal for operations in narrow passages and confined spaces, they can access ship cabins, carriages, and containers for efficient pallet handling.

Product Specifications

Model	CDDL1030	CDDL1530
Load Capacity	1000 kg	1500 kg
Lifting Height	3000 mm	3000 mm
Load Center	500 mm	500 mm
Fork Size	1100×170×50 mm	1100×170×50 mm
Ground Clearance	30 mm	30 mm
Pedal Length	410 mm	410 mm
Handler Height	1490 mm	1490 mm
Outer Distance Between Forks	685 mm	685 mm
Inner Distance Between Forks	345 mm	345 mm
Tyre Type	Polyurethane	Polyurethane
Control Way	Handler	Handler
Speed Regulation Way	Stepless Speed Regulation	Stepless Speed Regulation
Min. Turning Radius	1450 mm	1450 mm
Driving Speed with Full Loads	4 km/h	4 km/h
Gradient	3°/5°	3°/5°
Battery	24V/80A	24V/80A
Driving Motor	0.75 KW	0.75 KW
Lifting Motor	2.2 KW	2.2 KW
Tyre Size	210/80 mm	210/80 mm
Overall Size	1880×860×2100 mm	1880×860×2100 mm
Weight	580 kg	600 kg
Reference Working Time	3 h	3 h

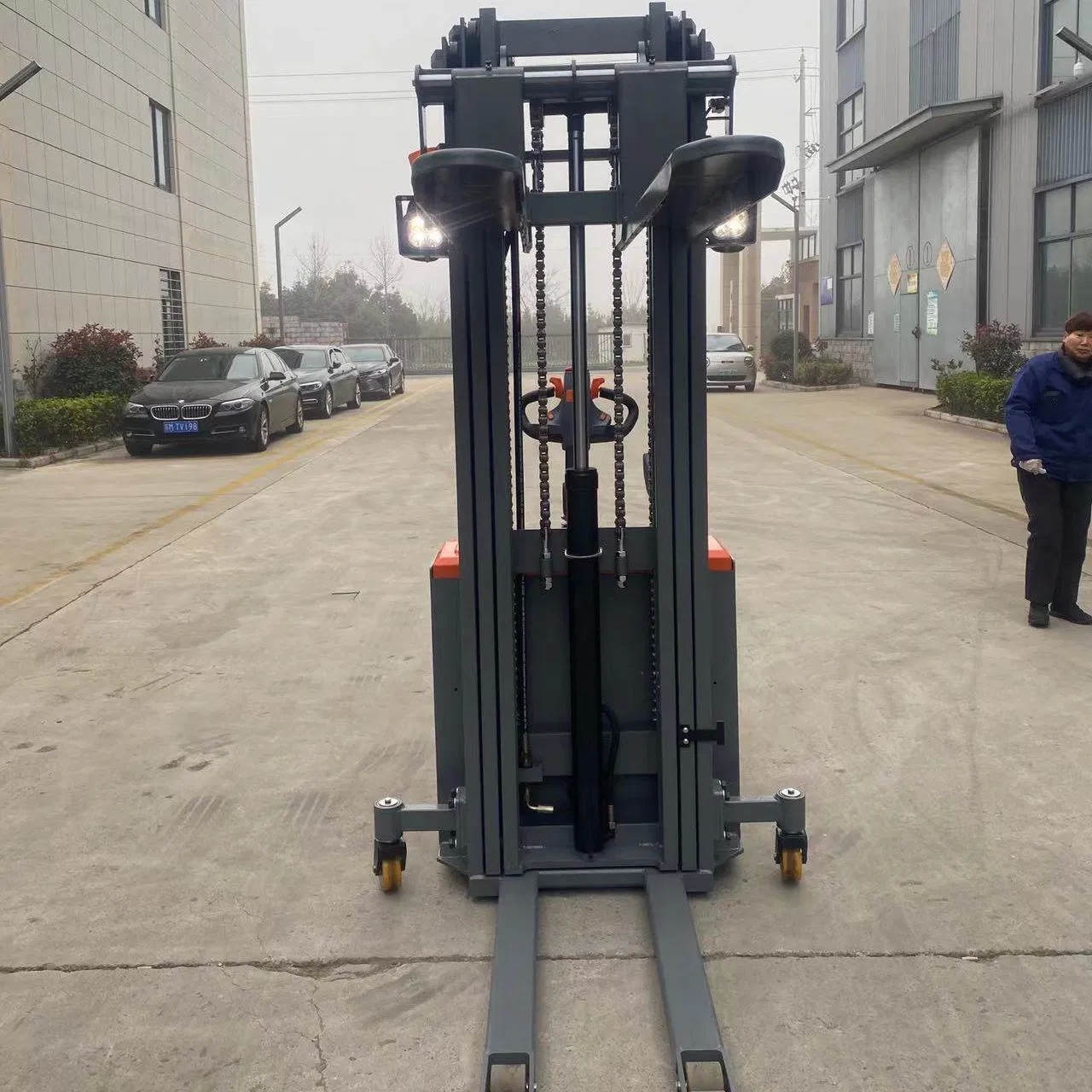

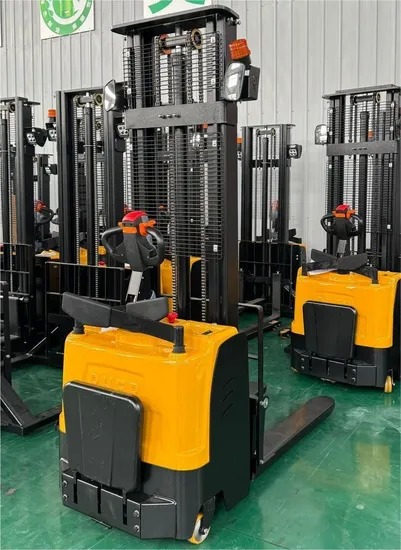

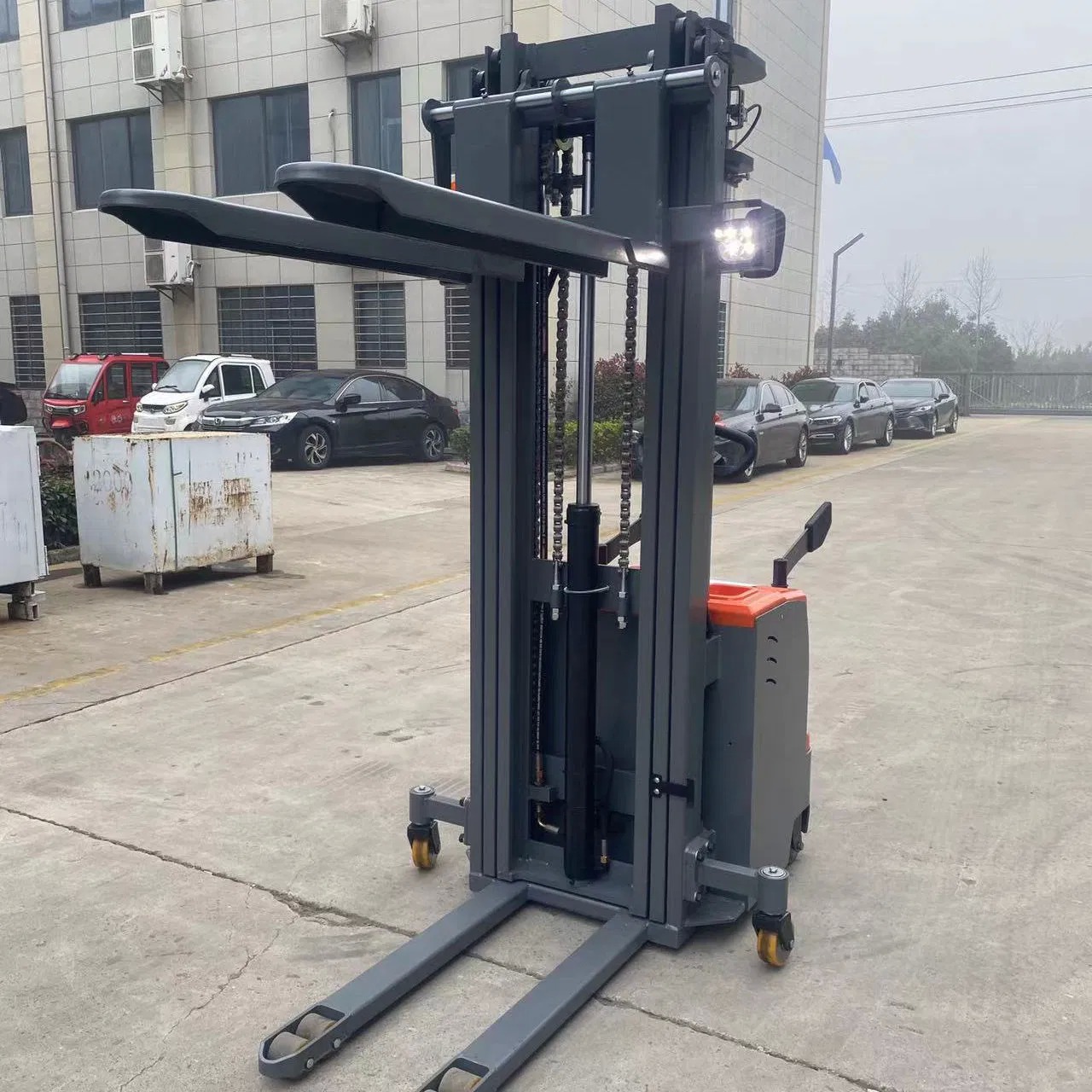

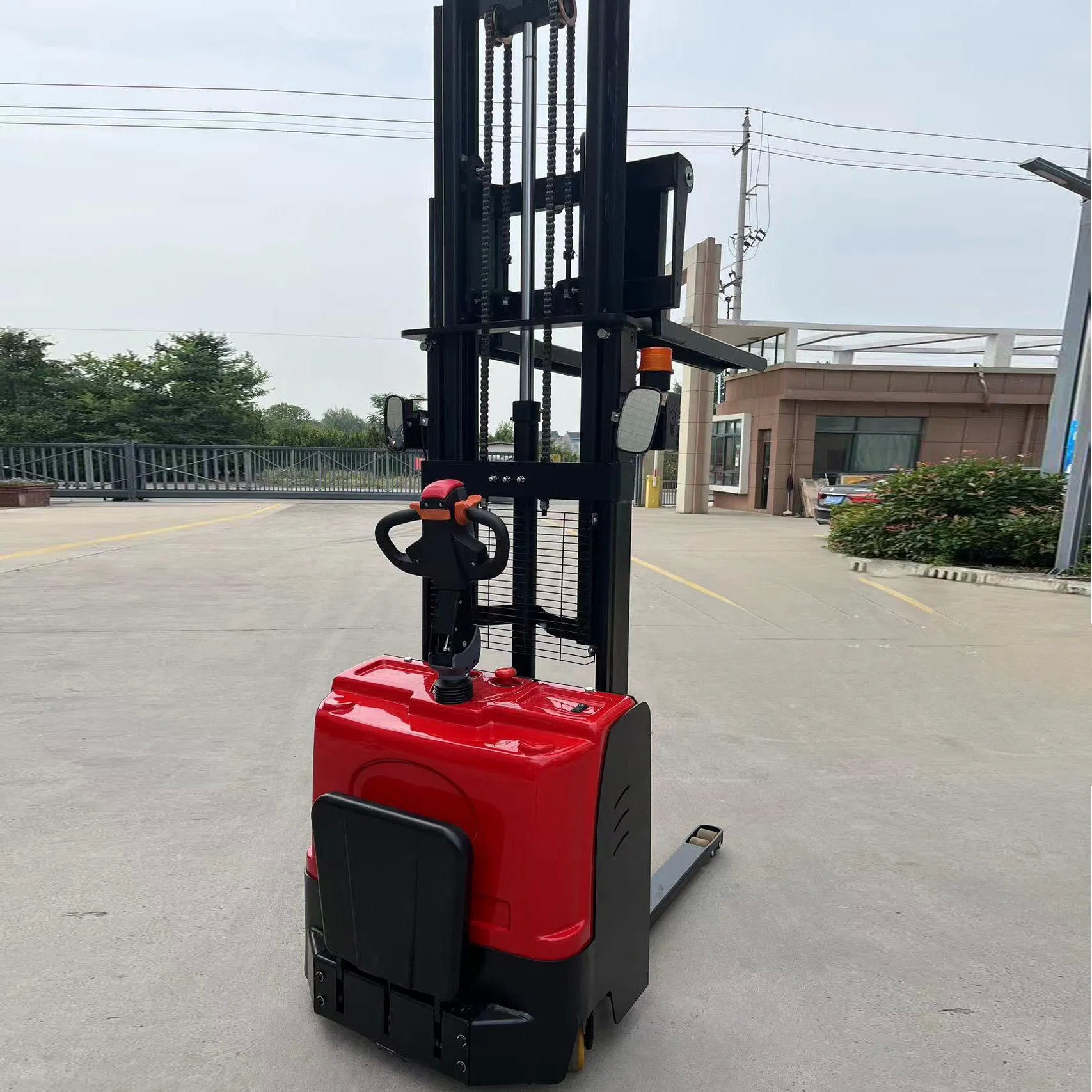

Detailed Photos

Key Components

Control Handle

Domestic famous KAD brand control handle with functional buttons for sensitive UP/DOWN and FORWARD/BACKWARD control.

Operation Panel

Combined with key, battery indicator, and emergency switch. Functional panel with beautiful design enhances work efficiency.

Mast System

Strong cylinder and chain ensure smooth fork operation. Available in 1-stage, 2-stage, or 3-stage mast configurations.

Drive System

Side-positioned drive system with strong caster wheels for enhanced stability and maneuverability.

Frequently Asked Questions

Q1. What is your terms of packing?

A: Generally, we pack our goods in paper package and Iron pallet. We can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Or as negotiated.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 5 to 30 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q6. How do you make our business long-term and good relationship?

A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
