Warehouse Grade Full Electric Stacker 2 Ton Capacity 3 Meter Lift With Dual Lifting System

Informations de base

Lieu d'origine:	Chine
Nom de marque:	KAD
Certification:	CE
Numéro de modèle:	CDD15

Quantité de commande min:	1 unité
Prix:	＄1200-＄1400 /unit
Détails d'emballage:	Palette en fer + film plastique
Délai de livraison:	10 jours ouvrables
Conditions de paiement:	LC, D/A, D/P, T/T, Western Union
Capacité d'approvisionnement:	500 unités/mois

meilleur prix Contactez

Couleur:	Rouge/personnalisé	Nom du produit:	Chariot élévateur électrique
Centre de charge:	500 mm	Capacité de charge:	1000-1500kg
Hauteur de charge:	3000mm	Fonctionnalité:	Haute efficacité
Capacité de la batterie:	Pour les appareils à commande numérique
Mettre en évidence:	2 ton electric pallet stacker , warehouse grade electric stacker , dual lifting system pallet stacker

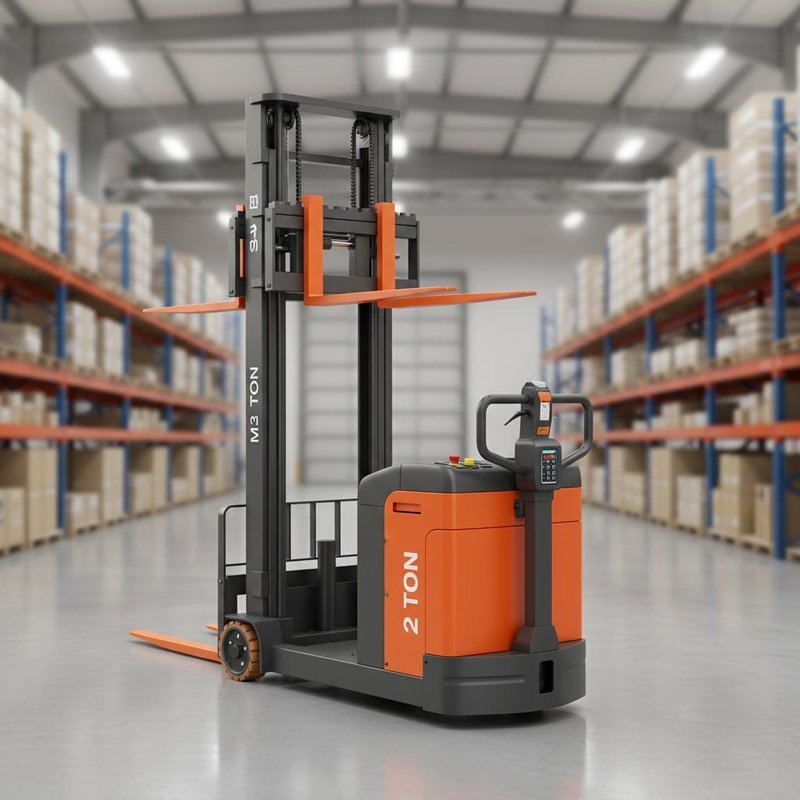

Warehouse Grade Full Electric Stacker 2 Ton Capacity 3 Meter Lift With Dual Lifting System

Boost warehouse efficiency with our Full Electric Initial Lift Stacker, designed for smooth and effortless pallet handling. Featuring a 3-meter lifting height and dual load capacity options (1.5T & 2T), this electric stacker ensures reliable performance in logistics, manufacturing, and storage operations.

Key Advantages

Full electric operation - No manual effort required, reducing worker fatigue
3m lifting range - Ideal for medium-to-high stacking tasks
1.5T/2T load capacity - Versatile for various pallet weights
Stable & durable - Robust construction for long-term industrial use
Easy maneuverability - Compact design for narrow aisles

Technical Specifications

Specification	Unit	Value
Power source		Battery
Rated load	kg	1500/2000
Load center	mm	500
Operation way		Standing operation, electric lifting, electric gripper, manual moving
Turning radius	mm	1500
Aisle width	mm	2560/2495
Length	mm	2040
Width	mm	830
Height	mm	2100
Mast		Two-Stage Mast
Max lifting height	mm	3000
Min height of forks	mm	200
Running speed (load/unload)	km/h	4.0/5.0
Hoisting speed (load/unload)	mm/s	0.08/0.135
Descent speed (load/unload)	mm/s	0.105/0.097
Climbing capability	%	5./10.
Braking mode		Electromagnetism
Tyres, material		Polyurethane
Load wheel dimensions	mm	80 × 70, 2pcs
Battery	v/ah	48/32
Weight	kg	620/750
